Approx Thermal Integrals (Jb, Jf)

Low-x (High-T) Approximate Thermal Integrals

This page documents the small (x) (high temperature) asymptotic expansions for the 1 loop thermal integrals:

\[J_b(x)=\int_0^\infty dy y^2\ln\bigl(1-e^{-\sqrt{y^2+x^2}}\bigr)\qquad J_f(x)=\int_0^\infty dy -y^2\ln\bigl(1+e^{-\sqrt{y^2+x^2}}\bigr)\]

with (x = m/T). The functions below implement the low (x) series used ubiquitously in finite temperature QFT.

Purpose (for both): provide fast, vectorized approximations valid for (\(|x|\ll 1\)). They return types (scalar-in → scalar-out; array-in → array-out), using modern numerics and clear error handling.

Signatures

Jb_low(x: float | array_like, n: int = 20) -> float | np.ndarray
Jf_low(x: float | array_like, n: int = 20) -> float | np.ndarray

Formulas

For small (|x|), the bosonic and fermionic integrals admit the asymptotic series

\[\boxed{ \begin{aligned} J_b(x) &= -\frac{\pi^4}{45} +\frac{\pi^2}{12} x^2 -\frac{\pi}{6} x^3 -\frac{1}{32} x^4\Big(\ln x^2 - C_b\Big) +\sum_{i=1}^{n} g^{(b)}*i x^{2i+4} \\ J_f(x) &= -\frac{7\pi^4}{360} +\frac{\pi^2}{24}x^2 +\frac{1}{32}x^4\Big(\ln x^2 - C_f\Big) +\sum_{i=1}^{n} g^{(f)}_i x^{2i+4} \end{aligned}}\]

where

\[C_b = \tfrac{3}{2}-2\gamma_E + 2\ln(4\pi)\qquad C_f = \tfrac{3}{2}-2\gamma_E + 2\ln(\pi) \]

and (\(\gamma_E\)) is the Euler Mascheroni constant. The tail coefficients (\(g^{(b)}_i, g^{(f)}_i\)) are precomputed from combinations of the Riemann zeta and Gamma functions (as in the literature), and we truncate the tail at order (n) (default (n=20), capped at 50).

Implementation notes

  • The (\(x^4\ln x^2\)) piece has a removable singularity at (x=0). We evaluate it as exactly zero at (\(x=0\)) to avoid \((0\times(-\infty))\) numerics.
  • The tail (\(\sum_{i=1}^{n}g_i x^{2i+4}\)) is accumulated as (\(x^4 \sum_i g_i (x^2)^i\)) for stability and performance.

Parameters, Returns & Errors

Parameters (both)

  • x (float | array_like): argument (x=m/T). Intended for the small (x) regime.
  • n (int, default 20): number of tail terms to add. Clipped to the available (50) precomputed terms.

Returns (both)

  • float | np.ndarray: \((J_{b,f}(x))\) with the chosen truncation; preserves scalar/array shape.

Raises (both)

  • ValueError if n < 0.
  • TypeError if x is complex. (Low (x) expansions are defined for real (x). For complex/imaginary mass, use the exact or spline implementations.)

When to use

  • Use Jb_low / Jf_low for fast high-T evaluations with (\(|x|\ll 1\)) when you don’t need the full integral and want smooth dependence near the origin.
  • Prefer the exact or spline versions outside the small (x) window or when high accuracy is required globally.

Caveats (asymptotic series):

  • Adding more terms (n) usually improves accuracy for sufficiently small (x), but for fixed (x) the series is asymptotic—there is an optimal truncation beyond which errors grow.
  • Not suitable for complex (x) (no physical meaning for mixed real+imag parts here; use exact/spline branches instead).

Usage hints

# Small-x grid (e.g., up to x ~ 0.5)
x = np.linspace(0.0, 0.5, 200)

# Fast approximations
Jb_approx = Jb_low(x, n=20)
Jf_approx = Jf_low(x, n=20)

# Cross-check near the origin (optional)
Jb0 = Jb_low(0.0)   # ≈ -π^4/45
Jf0 = Jf_low(0.0)   # ≈ -7π^4/360

For full validation plots and quantitative error checks against the exact integrals, see the test suite for this sub-module.

Test - Low-x (High-T)

Comparison: exact vs. low-x series

Setup: (\(x \in [0,,1.5]\)). We intentionally go beyond the strictly small-(x) window to show where the series starts to degrade. Truncation length (n=20) (can be tuned).

Note: If you change the grid one can see that for \(x \geq 3\), \(J_f\) diverges quickly. The same thing happens for \(x \geq 5.5\) in \(J_b\).

Plots

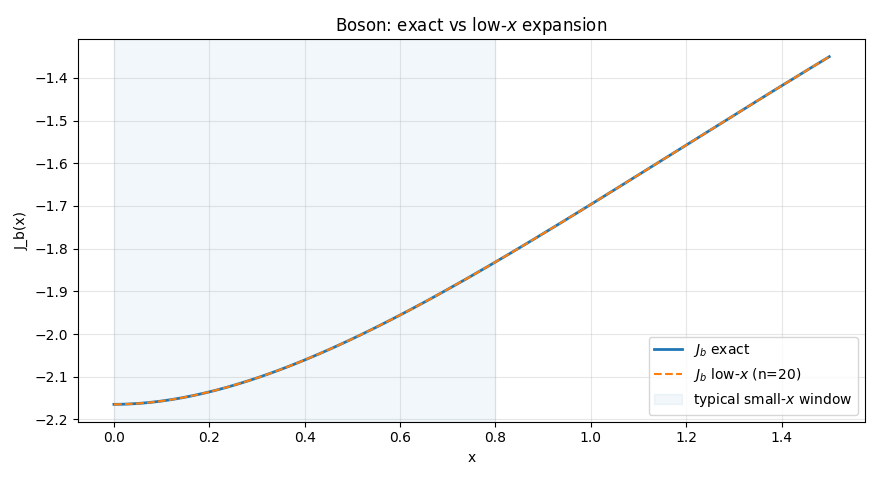

  • Boson: exact vs. low-x approximation Boson — exact vs low-x

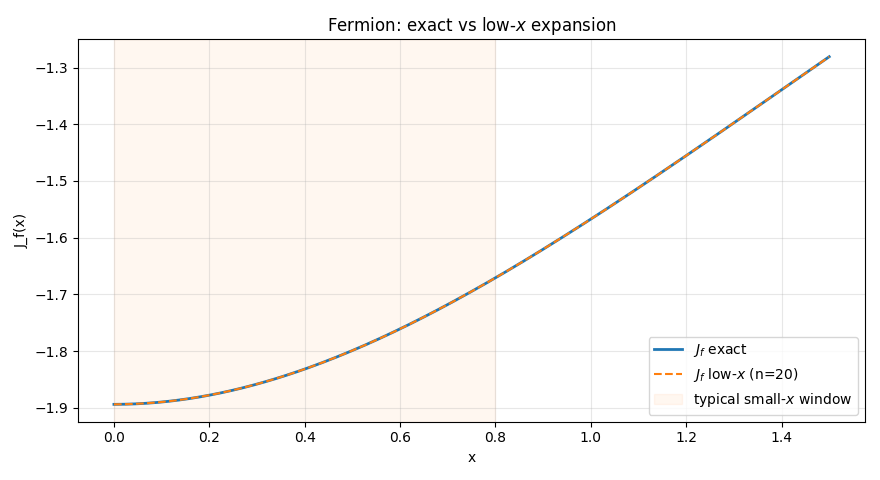

  • Fermion: exact vs. low-x approximation Fermion — exact vs low-x

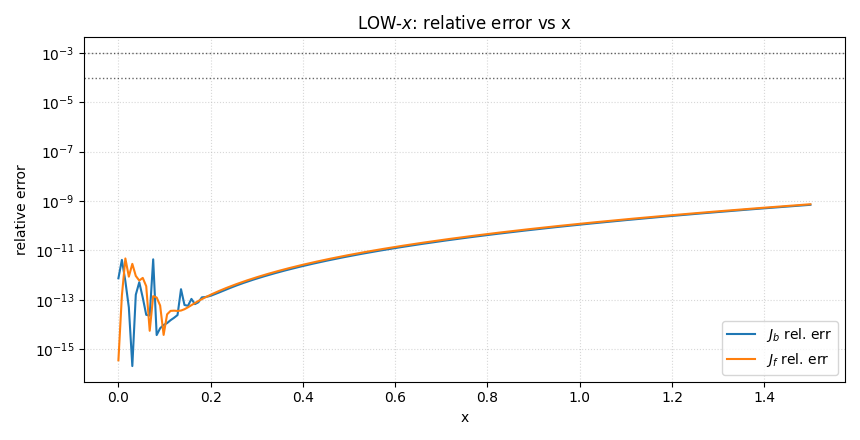

  • Relative error (both species on one panel; log scale) LOW-x relative error

Expected behavior

  • Near (\(x\approx 0\)), the low (x) series is excellent for both (\(J_b\)) and (\(J_f\)).
  • Accuracy gradually decreases as (x) grows; with \((n\approx 20)\), the series is typically more reliable up to (\(x\sim 1.5{-}2\)).

Console output

=== Test 1: LOW-x (high-T) comparison: exact vs low-x series ===
Boson  (low-x)  n=20: max abs err=9.492e-10, max rel err=7.029e-10
Fermion(low-x)  n=20: max abs err=9.492e-10, max rel err=7.411e-10
  threshold 1e-03: max x with rel err < thr →  J_b: 1.500,  J_f: 1.500
  threshold 1e-04: max x with rel err < thr →  J_b: 1.500,  J_f: 1.500
Expectation: The low-x series is excellent near x≈0 and degrades gradually;
             truncation at n≈20 is typically sufficient up to x~1.5–2.

High-x (Low-T) Approximate Thermal Integrals

This page documents the large (x) (low temperature) asymptotic expansions of the 1 loop thermal integrals,

\[J_b(x)=\int_0^\infty dy y^2\ln \bigl(1-e^{-\sqrt{y^2+x^2}}\bigr)\qquad J_f(x)=\int_0^\infty dy -y^2\ln \bigl(1+e^{-\sqrt{y^2+x^2}}\bigr)\]

with (x=m/T). For (\(x\gg 1\)), both integrals admit rapidly convergent series in terms of the modified Bessel functions (\(K_\nu\)).

Purpose (for all functions in this block): provide fast, vectorized, and numerically stable high (x) approximations (and up to 3 derivatives) using sums of (\(K_\nu\)).

Signatures

# Term (single-k) building blocks
x2K2(k: int, x: float | array_like)  -> float | np.ndarray
dx2K2(k: int, x: float | array_like) -> float | np.ndarray
d2x2K2(k: int, x: float | array_like)-> float | np.ndarray
d3x2K2(k: int, x: float | array_like)-> float | np.ndarray

# High-x sums (public)
Jb_high(x: float | array_like, deriv: int = 0, n: int = 8) -> float | np.ndarray
Jf_high(x: float | array_like, deriv: int = 0, n: int = 8) -> float | np.ndarray

Formulation

The expansions are built from the “single (k)” terms

\[T_k(x)\equiv -\frac{x^2}{k^2}K_2\big(k|x|\big)\]

whose derivatives w.r.t. (x) (accounting for the even/odd symmetry through (|x|)) are:

  • 0th: \((T_k(x)= -\dfrac{x^2}{k^2}K_2\big(k|x|\big))\).
  • 1st: \((\dfrac{dT_k}{dx} = \dfrac{x|x|}{k}K_1\big(k|x|\big))\) (odd, vanishes at (x=0)).
  • 2nd: \((\dfrac{d^2T_k}{dx^2} = |x|\left(\dfrac{K_1(k|x|)}{k}-|x|K_0(k|x|)\right))\) (even).
  • 3rd: \((\dfrac{d^3T_k}{dx^3} = x\left(|x|k K_1(k|x|)-3K_0(k|x|)\right))\) (odd).

Then:

\[\boxed{J_b^{\text{high}}(x) \approx \sum_{k=1}^{n} \frac{d^{\text{deriv}}}{dx^{\text{deriv}}}T_k(x)}\]
\[\boxed{J_f^{\text{high}}(x) \approx \sum_{k=1}^{n} (-1)^{k-1}\frac{d^{\text{deriv}}}{dx^{\text{deriv}}}T_k(x)} \]

The alternating sign for (\(J_f\)) reflects Fermi–Dirac statistics. Each term decays (\(\sim e^{-k|x|}\)), so only a few terms are needed for (\(x\gtrsim\mathcal{O}(1)\)).

Small-(x) limits for single-(k) terms

Used to avoid numerical issues and ensure smoothness at (x=0):

\[\lim_{x\to 0} T_k(x) = -\frac{2}{k^4}\qquad \lim_{x\to 0} \frac{dT_k}{dx} = 0\qquad \lim_{x\to 0} \frac{d^2T_k}{dx^2} = \frac{1}{k^2}\qquad \lim_{x\to 0} \frac{d^3T_k}{dx^3} = 0\]

Parameters, Returns & Errors

Parameters (all):

  • x (float | array_like, real): argument (x=m/T). These high-(x) series target real (x).
  • deriv (int, default 0 for J*_high): order of derivative to return (0, 1, 2, 3).
  • n (int, default 8 for J*_high): number of exponential terms in the truncated sum; must be ≥ 1.

Returns (all):

  • float | np.ndarray: the requested approximation, preserving scalar/array shape.

Raises (all):

  • TypeError if x is complex (no physical meaning for mixed real+imag here; use exact/spline branches for complex analyses).
  • ValueError if deriv ∉ {0,1,2,3} or if n < 1.
  • ValueError if a term helper is called with k ≤ 0 (internal guard).

When to use

  • Use Jb_high / Jf_high (and derivatives) when (x) is moderately to very large (e.g. (\(x \gtrsim 2\))), where the series converges exponentially fast.

  • For small or intermediate (x), prefer:

  • Jb_low / Jf_low (low (x) series, high T),

  • Jb_exact / Jf_exact (direct quadrature),
  • or Jb_spline / Jf_spline (global interpolation).
  • Complex (x) has no direct physical interpretation here and is not supported by the high (x) series.

Usage hints

# Example: values (no derivatives), n=8 terms
x = np.linspace(2.0, 8.0, 60)
Jb = Jb_high(x, deriv=0, n=8)
Jf = Jf_high(x, deriv=0, n=8)

# First derivatives
dJb = Jb_high(x, deriv=1, n=8)
dJf = Jf_high(x, deriv=1, n=8)

# Scalar input → scalar output
val_b = Jb_high(5.0)        # float
val_f = Jf_high(5.0, 2, 10) # d²/dx² with 10 terms

Convergence tip: increase n until your observable stops changing at the precision you need. Because terms scale as (\(e^{-k|x|}\)), a modest n (6–12) is usually enough for (\(x \gtrsim 2\)).

Numerical/Implementation Notes

  • We evaluate Bessel functions with SciPy (scipy.special.kv), always using (k|x|) in the argument to maintain the correct even/odd symmetry of derivatives.
  • At x == 0, we insert the analytic limits listed above to avoid underflow/overflow and ensure smoothness.
  • Functions are fully vectorized (array-in → array-out) while preserving scalar behavior (scalar-in → scalar-out), consistent with the legacy API.

High-x (Low-T) - Test

comparison: exact vs. high x series

Setup: (\(x \in [2,,10]\)). We compare the exact integrals against the high (x) sums with (\(n\in{4,8,12}\)) terms to illustrate exponential convergence.

Plots

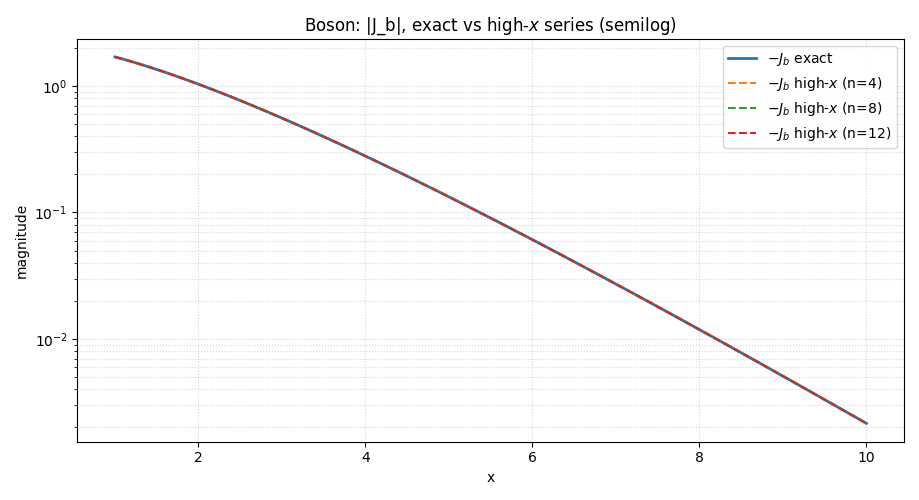

  • Boson: (\(|J_b|\)) semilog — exact vs. high-(x) (n=4,8,12) Boson — high-x semilog

  • Fermion: (\(|J_f|\)) semilog — exact vs. high-(x) (n=4,8,12) Fermion — high-x semilog

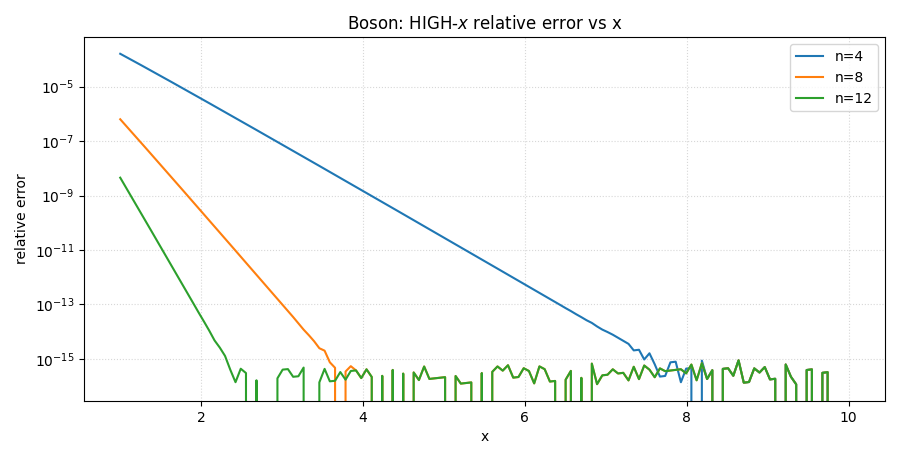

  • Boson: relative error vs. (x) (n=4,8,12) Boson — high-x relative error

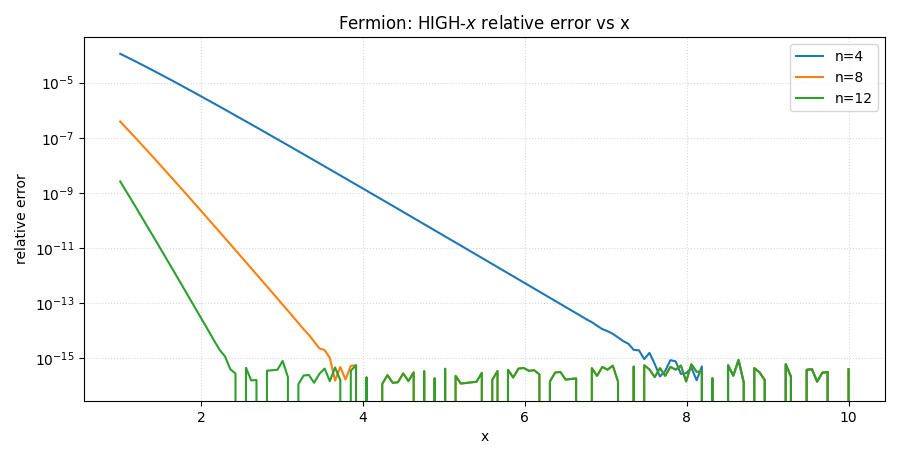

  • Fermion: relative error vs. (x) (n=4,8,12) Fermion — high-x relative error

Expected behavior

  • Both (\(|J_b|\)) and (\(|J_f|\)) decay roughly (\(\sim e^{-x}\)); the high-(x) sums track the exact curves closely on semilog axes.
  • Relative error drops rapidly with increasing (n) and (x); \((n\approx 8{-}12)\) is usually very accurate for (\(x\gtrsim 2\)).

Console output

=== Test 2: HIGH-x (low-T) comparison: exact vs high-x series ===

High-x error summary (boson):
  n= 4: max rel err=1.619e-04, median rel err=3.945e-12
  n= 8: max rel err=6.351e-07, median rel err=3.778e-16
  n=12: max rel err=4.527e-09, median rel err=2.949e-16

High-x error summary (fermion):
  n= 4: max rel err=1.113e-04, median rel err=3.929e-12
  n= 8: max rel err=3.878e-07, median rel err=3.485e-16
  n=12: max rel err=2.618e-09, median rel err=2.686e-16

Expectation: High-x sums converge exponentially fast with n and x;
             even n≈8–12 is typically very accurate for x≳2.

---------- END OF TESTS: Approx Thermal Integrals ----------
